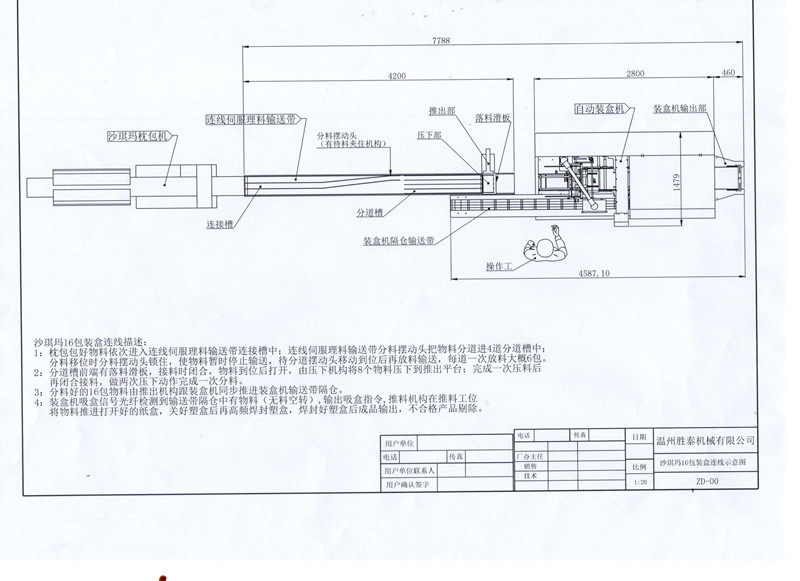

Connection between Shaqima 16 pillow packing machine and automatic box loading machine:
1. The pillow packing machine wraps the materials into the connecting slot of the connecting servo material handling belt in turn; Connect the servo material handling conveyor belt to separate the material into 4 separate grooves; When the material is shifted, the material swinging head is locked, so that the material will be temporarily stopped from being transported. After the material is moved to the proper position, the material will be discharged and transported. Each time, about 6 bags of material will be discharged.
2. There is a blanking slide at the front end of the chute, which is closed when receiving the material and opened when the material is in place. The eight materials are pressed down to the pushing platform by the pressing mechanism; After completing one press, close and receive the material, and perform two press actions to complete one material distribution.
3. The separated 16 bags of materials are pushed into the bin by the conveyor belt of the cartoner synchronously by the pushing mechanism and the cartoner.
4. The suction signal optical fiber of the cartoning machine detects that there is material (no material idling) in the conveyor belt compartment, and outputs the suction command. The pushing mechanism pushes the material into the open carton at the pushing station. After the plastic box is closed, the plastic box is welded and sealed at high frequency. After the plastic box is welded and sealed, the finished product is output, and unqualified products are removed.
