Main performance and structural features of automatic cartoning machine:

1. Adopt automatic opening (suction) box, folding instructions, blanking, feeding, batch number printing, box sealing, waste detection and other processes, with stable operation and low noise< br /> 2. PLC and human-machine interface automatic control operation system, stepless frequency conversion speed regulation, high degree of automation, easy to understand operation< br /> 3. It adopts well-known electrical components, with stable and reliable performance< br /> 4. The machine overload automatic shutdown function is adopted to ensure the safety of human and machine< br /> 5. Automatically remove the packaging products that lack the packaging materials or instructions to ensure the quality of the packaging products< br /> 6. With the functions of fault display, alarm and finished product counting, it is easy to maintain and handle faults< br /> 7. According to customer requirements, we can design various automatic blanking devices and conveying mechanisms< br /> 8. Optional hot melt adhesive machine adopts hot melt adhesive spray sealing or design hot melt adhesive brushing device< br /> 9. It can realize joint and linkage production with aluminum plastic packaging machine, pillow packaging machine, filling machine, soap making machine, code spraying machine (or supervision code system), labeling machine, online weighing instrument, three-dimensional packaging machine, heat shrinkable packaging machine, strapping machine, and other production lines< br />

Technical parameters of automatic cartoning machine:

model	Model	STZ-260
Paper requirements	Carton materialrequirements	280-350g/m2 (depending on the size of the carton)
Package specification	Packing specifications	L150-350mm × W180-260mm × H30-120m
Packaging speed	Packing speed	30-70 boxes/min
Main engine motor power	Main motor power	2kw
Total power	Power source	2kw (actual deviation)
Power supply type	Power supply type	380V 50HZ/60HZ three-phase five-wire
Machine noise	Machine noise	≦80dB
Air source	Compressed air pressure	0.5-0.8Mpa
Gas consumption	Air consumption	120-160L/min
Overall dimensions of the machine	Machine size	5190mmx1560mmx1905mm
Operating Weight	Machine weight	2500kg

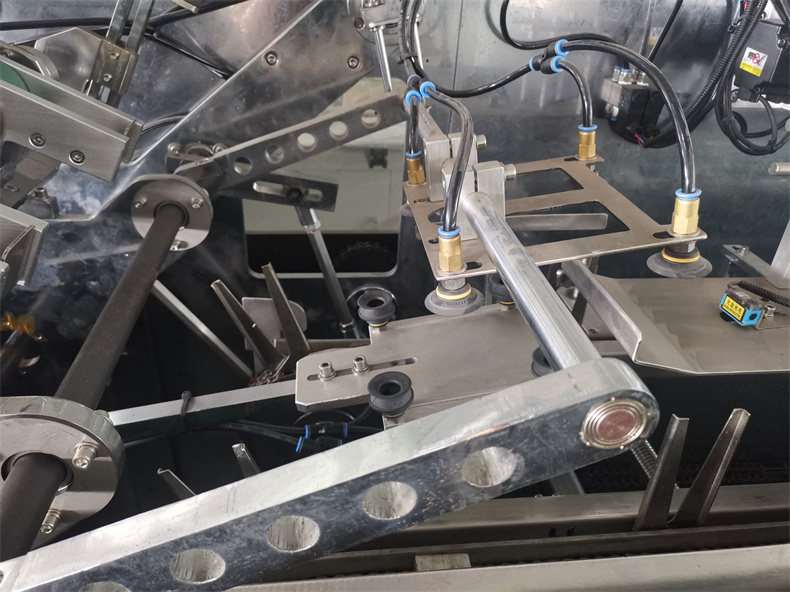

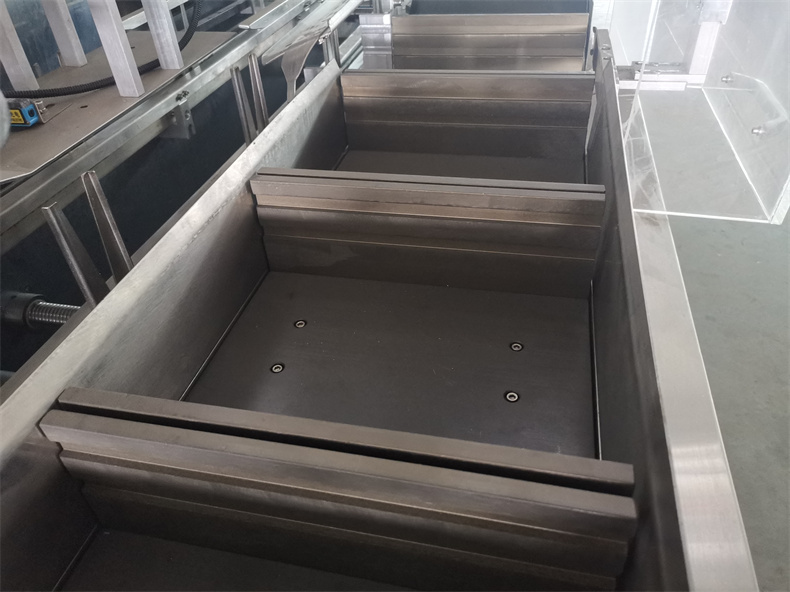

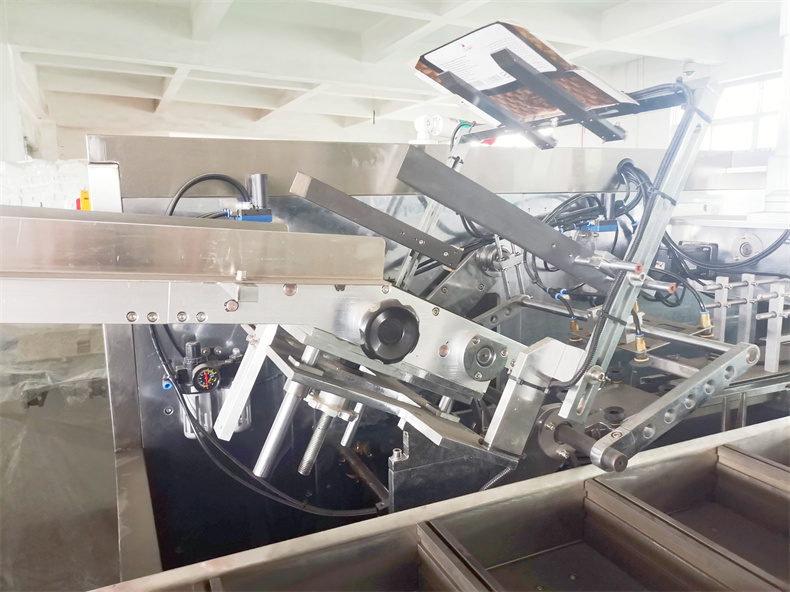

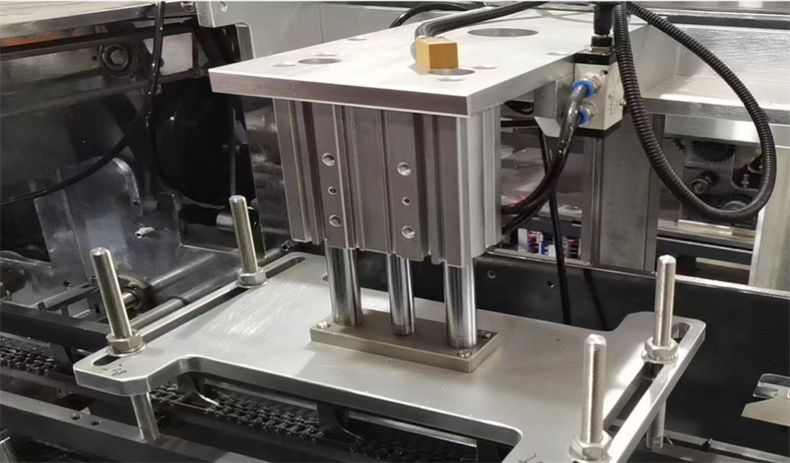

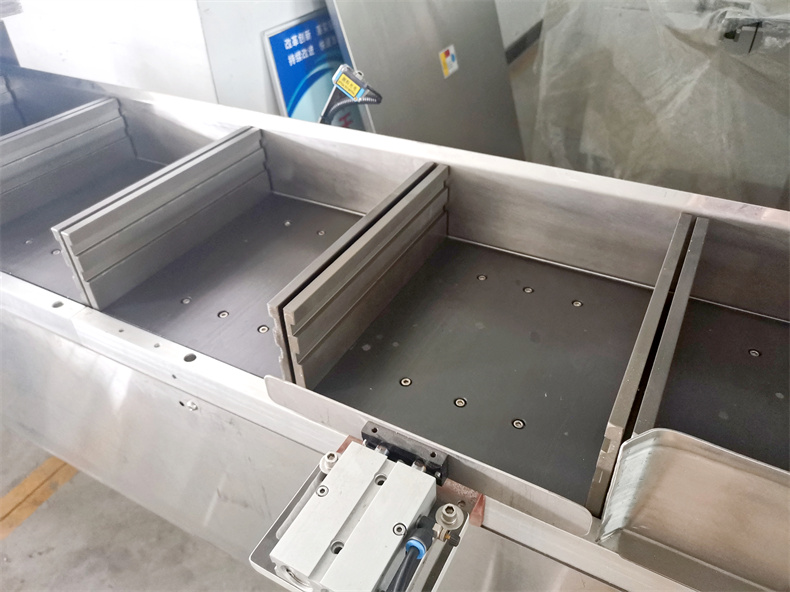

Automatic cartoning machine equipment details:

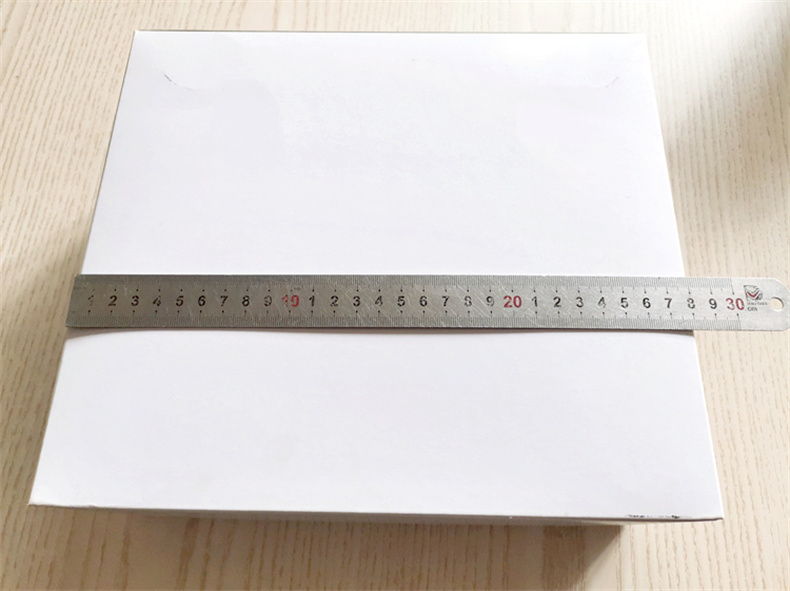

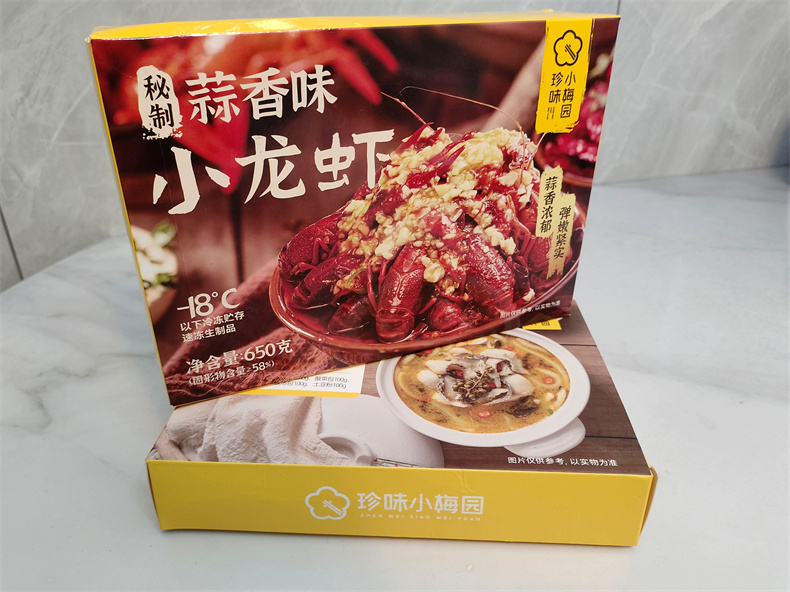

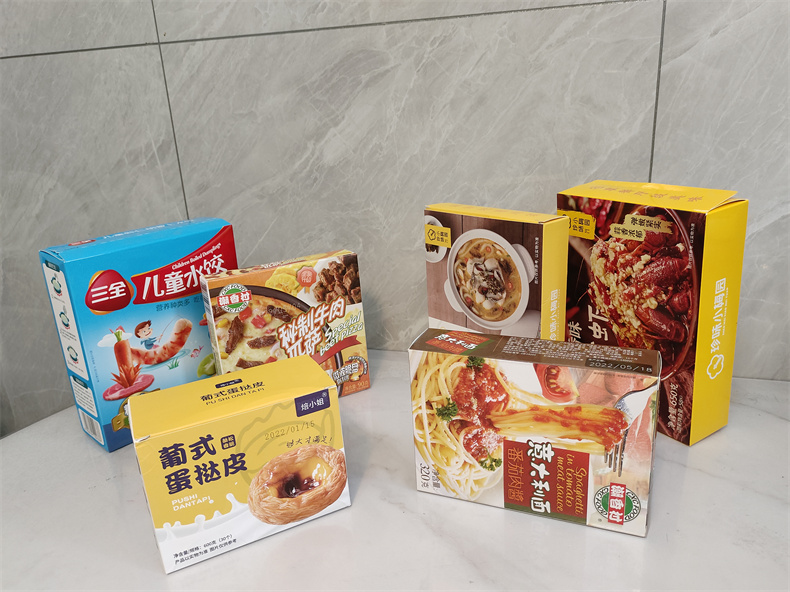

Package sample:
