STZ-300

Full-automatic packing machine

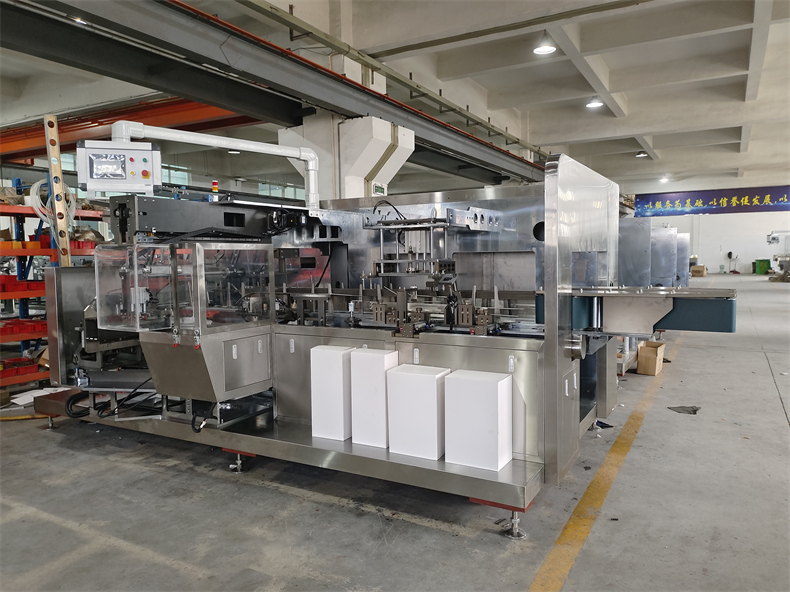

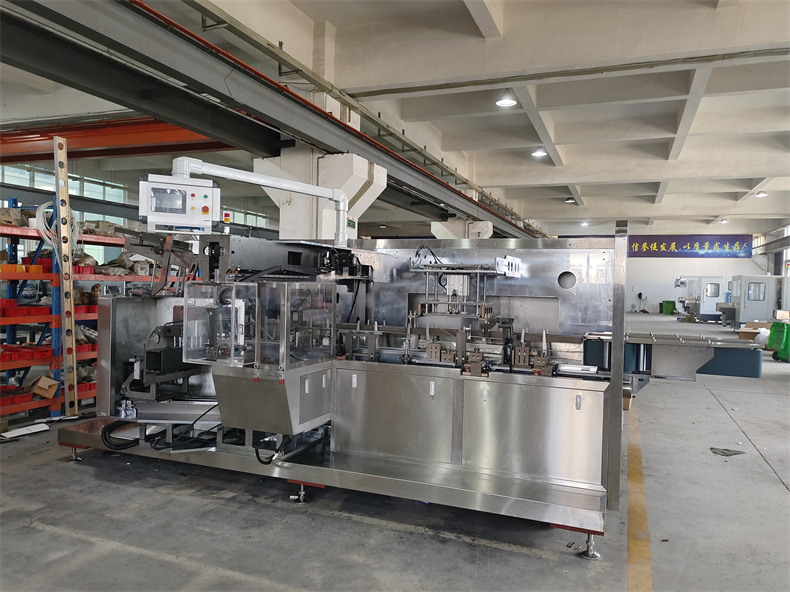

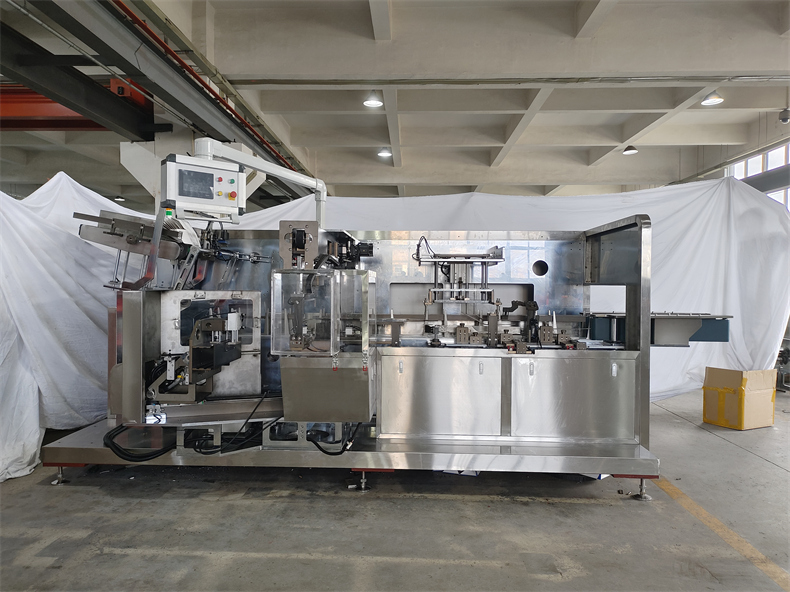

Product Overview：The newly developed oversized cartoning machine of Wenzhou Shengtai Machinery is suitable for automatic cartoning of large-sized products, and can also be used for express packaging and delivery. The sealing method can be tongue type, glue spraying type or bottom buckle type. The packaging effect of the equipment is more beautiful than that of the traditional packing machine. It can also be connected with the front-end equipment for intelligent transportation, saving the steps of manual feeding.

Contact Send

Video

Technical parameter

The newly developed oversized cartoning machine of Wenzhou Shengtai Machinery is suitable for automatic cartoning of large-sized products, and can also be used for express packaging and delivery. The sealing method can be tongue type, glue spraying type or bottom buckle type. The packaging effect of the equipment is more beautiful than that of the traditional packing machine. It can also be connected with the front-end equipment for intelligent transportation, saving the steps of manual feeding. 装盒机

自动装盒机大盒装盒机

全自动装盒机技术参数

model	STZ-300
Paper requirements	400 g/m3
Package specification	L200-570W110-300H100-190mm
Packaging speed	15-40 boxes/min
Motor power	2.25kw
Total power	5.75kw
Power supply type	380V 50HZ/60HZ three-phase five-wire
Machine noise	≦80dB
Air source	0.5-0.8Mpa
Gas consumption	150-220L/min
Overall dimension	L5600W2400H2120
Operating Weight	3500kg
