ST-180

High Speed Facial Tissue Carton Box Packing Machine

Product Overview：Wenzhou Shengtai Machinery Co., Ltd. specializes in manufacturing high-speed horizontal cartoning machine, vertical cartoning machine, high-speed three-dimensional packaging machine, heat-shrinkable packaging machine, copy paper packaging machine, tissue sealing machine, full-automatic labeling machine, etc. It is widely used in food, entertainment products, hardware and auto parts, daily necessities, cosmetics, medical and health care products, sanitary products and other industries to achieve full automatic production packaging.

Contact Send

Video

Technical parameter

Technical Parameters

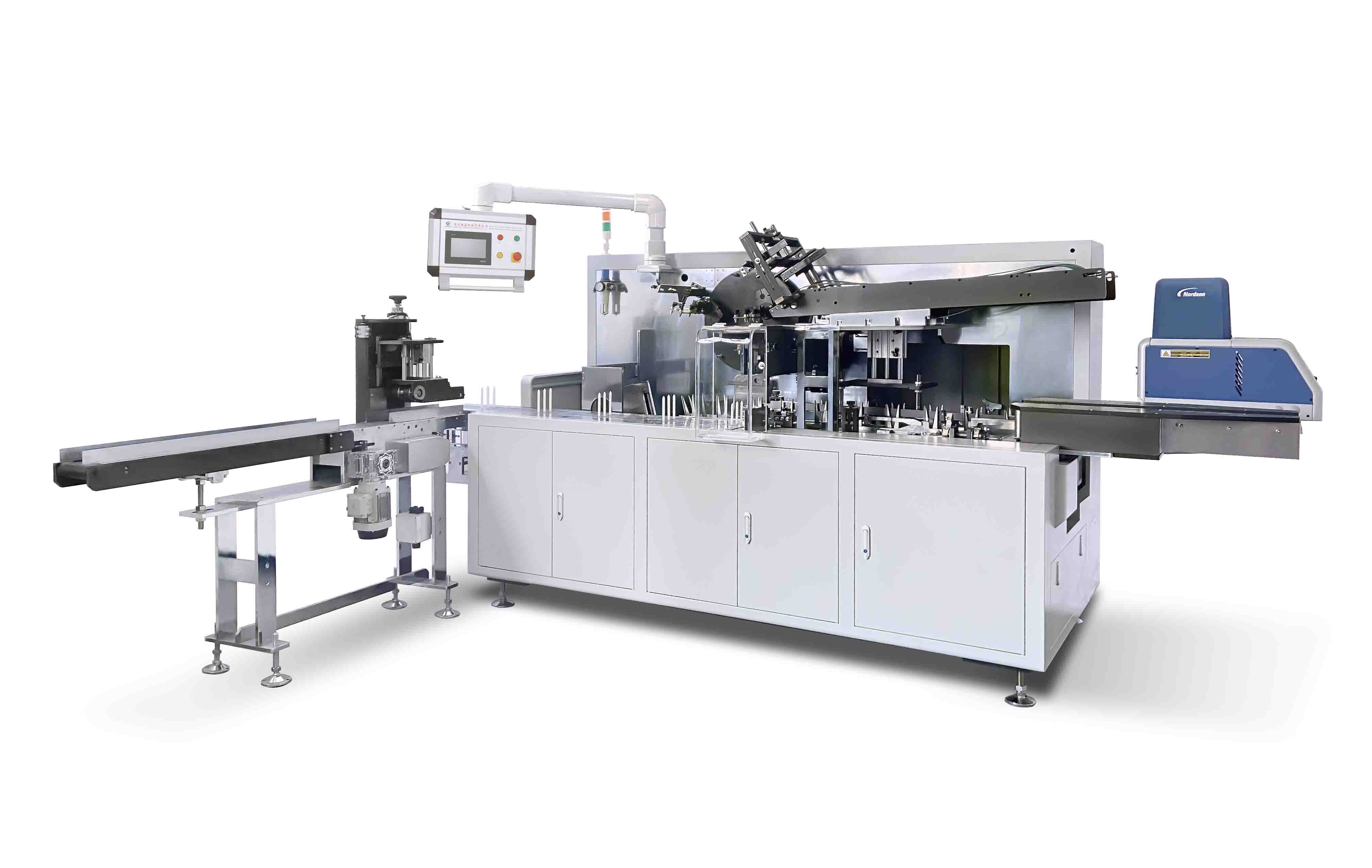

1、Machine Outlook

2、Main Features and Advantages

2.1 ST-180 High Speed Facial Tissue Carton Box Packing Machine uses the motion control system .

2.2 Max capacity of up to 150 boxes per minute.

2.3 High standard security performance.

2.4 Compact and reasonable structure,simple operation and adjustment.

2.5 Adopting photoelectric eye automatic detection tracking system.

2.6 Stop automatically if no cartons or out of leaflets continuous.

2.7 Easy to change to different sizes.

2.8 Protecting automatically for overloading.

2.9 Using the famous America glue machine .

3、ST-180 Layouts

4、Packing Style and Specification

4.1 Flow Chart

4.2 Real Example

5、Machine Performance and Parameters

Item/model	ST-180
Paper quality of carton	300-400g/m3
Maximum packing specification	L(100-240)mm×W(100-120)mm×H(20-90)mm
Packing speed	30-150 boxes/minute
Hot melt machine power	4KW
Motor power	5.5KW
Total power	10 KW
Power supply type	3phase 4wire 380V 50HZ/60HZ
Machine noise	≤80dB
Air supply	0.5-0.8 Mpa
Air consumption	120-160L/min
Machine Size	L4570xW1700x1800mm
Machine weight	2500Kg

6、Main Components List

No.	Components	Model	Brand
1	Motion Controller	SMC606/LQ-F06I	Shengtai
2	Motion controller module	EM32DX-E4	Shengtai
3	Touch Screen	HMIGXU3512	French Schneider
4	Frequency Converter 1	BL3210-5BB17-5UV1	Germany Siemens
5	Proximity Switch	TL-W3MC1	Japan Omron
6	Servo Driver	ASD-A2-0721-L	Taiwan Delta
7	Servo Motor	ECMA-C20807RS	Taiwan Delta
8	Servo Driver	ASD-A2-2043-M	Taiwan Delta
9	Servo Motor	ECMA-K11320RS	Taiwan Delta
10	Encoder	E6B2-XWZ6C 1000P/R	Japan Omron
11	Power Switch	DRP024V120W1AA	Taiwan Delta
12	AC contactor	LC1E3210M5N	French Schneider
13	Air Switch	OSMC32N3C32	French Schneider
14	Air Switch	OSMC32N3C20	French Schneider
15	Air Switch	OSMC32N2C20	French Schneider
16	Air Switch	OSMC32N1C10	French Schneider
17	Red Switch	ZB2-BR4C	French Schneider
18	Red Bottom Switch	ZB2BZ102C	French Schneider
19	Yellow Switch	ZB2-BR5C	French Schneider
20	Green Bottom Switch	ZB2BZ101C	French Schneider
21	Emergency Stop Switch	ZB2-BS54C	French Schneider
22	Glue machine	PROBLUE7 1022232	Nordson America

7、Free Spare Parts List

No.	Name	Specification	Unit	Qty
1	Tool Box		set	1
2	Sucker(Upper)	SF40	pc	2
3	Sucker(Bottom)	SB30	pc	2
4	Nylon finger	ф12.5 L150	pc	10
5	Photocell	Sick	pc	1
6	Push rod Aluminum block		pc	5
