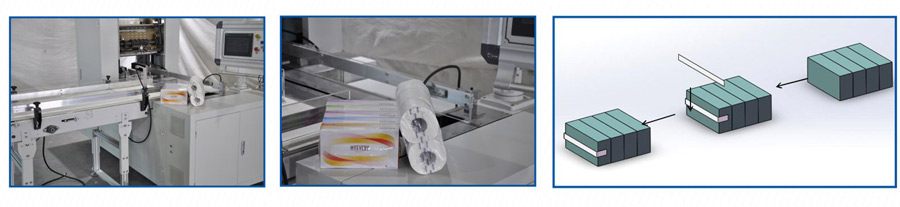

Working steps of the automatic handle-laying machine:

1、 Adjust the equipment parameters according to the package size;

2、 The package to be pasted on the conveyor belt into the machine;

3、 The device automatically attaches the handle to the package.

Technical parameters:

equipment	ST-600 automatic handlebar pasting machine
Handle material	PET coated with adhesive on both sides
Roll film specification	external diameter φ≤ 280mm Paper core inner diameter 76mm, width ≤ 400mm
Package specification	L≤700mm × W≤260mm × H≤130mm
throughput	5-50 liters/minute
Handle width	20-50mm
Power supply	Three-phase five-wire 380V50HZ 1.0kw
Air source	0.5-0.8Mpa
Gas consumption source	60-100L/min
Overall dimension	L1990 × W1100 × H1780mm
Operating Weight	900kg

Product features:

1. It adopts the packaging form of automatic feeding, film feeding, slitting, lower lifting handle, sticking and welding, with compact and reasonable structure and simple operation and adjustment.

2. With servo, touch screen and PLC programmable control system, the human-machine interface display operation is clearer and simpler, with high automation and more humanization< br /> 3. The automatic material handling and conveying mechanism is adopted to facilitate the linkage production with the automatic production line, which can greatly reduce the labor cost< br /> 4. The photoelectric eye automatic detection and tracking system is adopted to save packaging materials< br /> 5. The packaging model is large, easy to adjust, and can realize fast conversion between various specifications and sizes< br /> 6. It is not necessary to change the mold to change the specification. It can be realized only by adjusting< br /> 7. The width of the handle can be adjusted according to the needs of customers< br />

8. According to customer requirements, the handle can be pasted by hot welding.

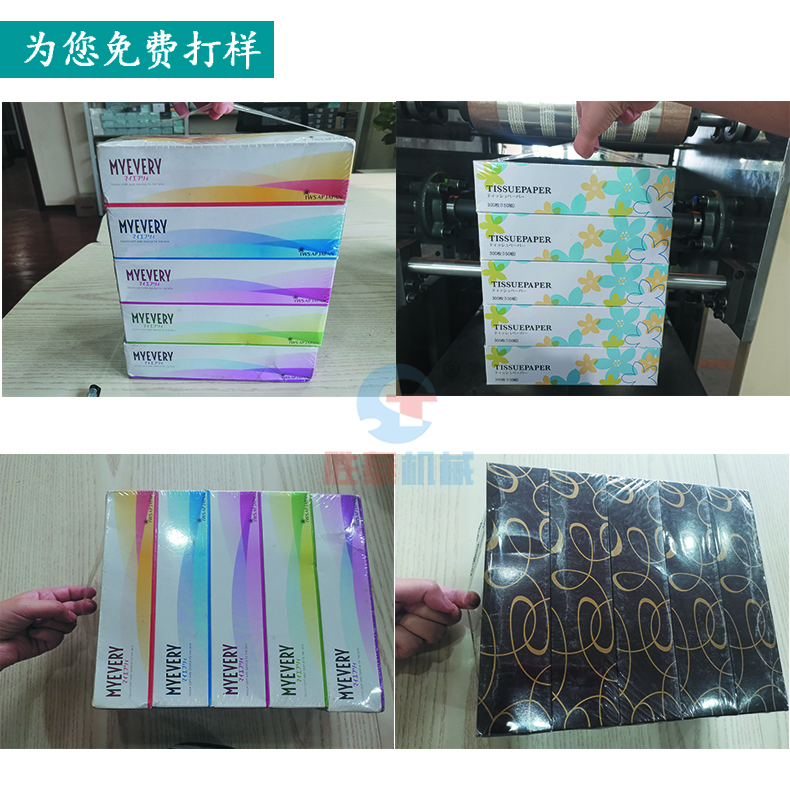

Sample display:
