ST-100Y

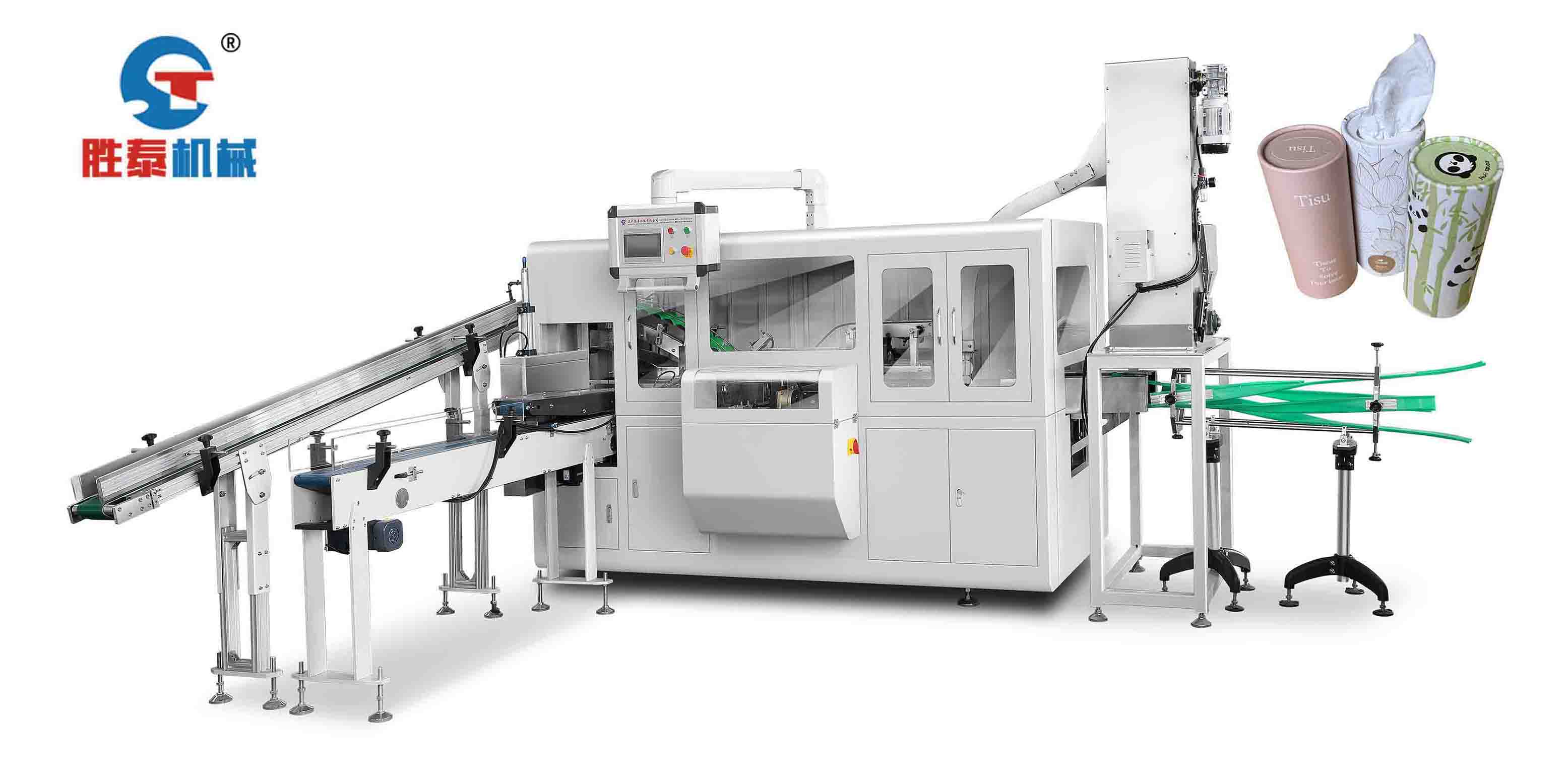

Full-automatic cylindrical car-mounted paper towel packaging machine

Product Overview：Full-automatic cylindrical vehicle-mounted paper towel packaging machine uses a series of mechanical transmission and the cooperation of light, electricity and gas to automatically complete the processes of material feeding, material distribution, box feeding, box lowering, material loading, detection, waste removal and finished product output. It is applicable to the product packaging of various cylindrical packaging boxes, and can be used for tea packaging, tissue packaging, food packaging, etc.

Contact Send

Video

Technical parameter

Full-automatic cylindrical car-mounted paper towel packaging machine is applicable to the product packaging of various cylindrical packaging boxes, and can be used for tea packaging, paper towel packaging, food packaging, bagged strip and other product packaging. The outer packaging cylinder of the equipment automatically conveys and unloads materials, and the materials are fed and output, which can be matched with the capping equipment.

Technical parameters:

equipment	ST-100Y cylinder vehicle-mounted tissue packaging machine
Paper requirements	300-400g/m3
Package specification	L100-180mm; Ø50-100mm
Packaging speed	30-80 boxes/min
Motor power	1.5KW
Total power	4.2KW
Power supply type	Three-phase five-wire 380V 50Hz
Machine noise	≤80dB
Gas & nbsp;& nbsp; source	0.5-0.8 Mpa
Gas consumption	100-120L/min
Host size	L3250 × W1650 × H1800mm
Conveyor size	L2000 × W260 × H1200mm
Operating Weight	2100kg

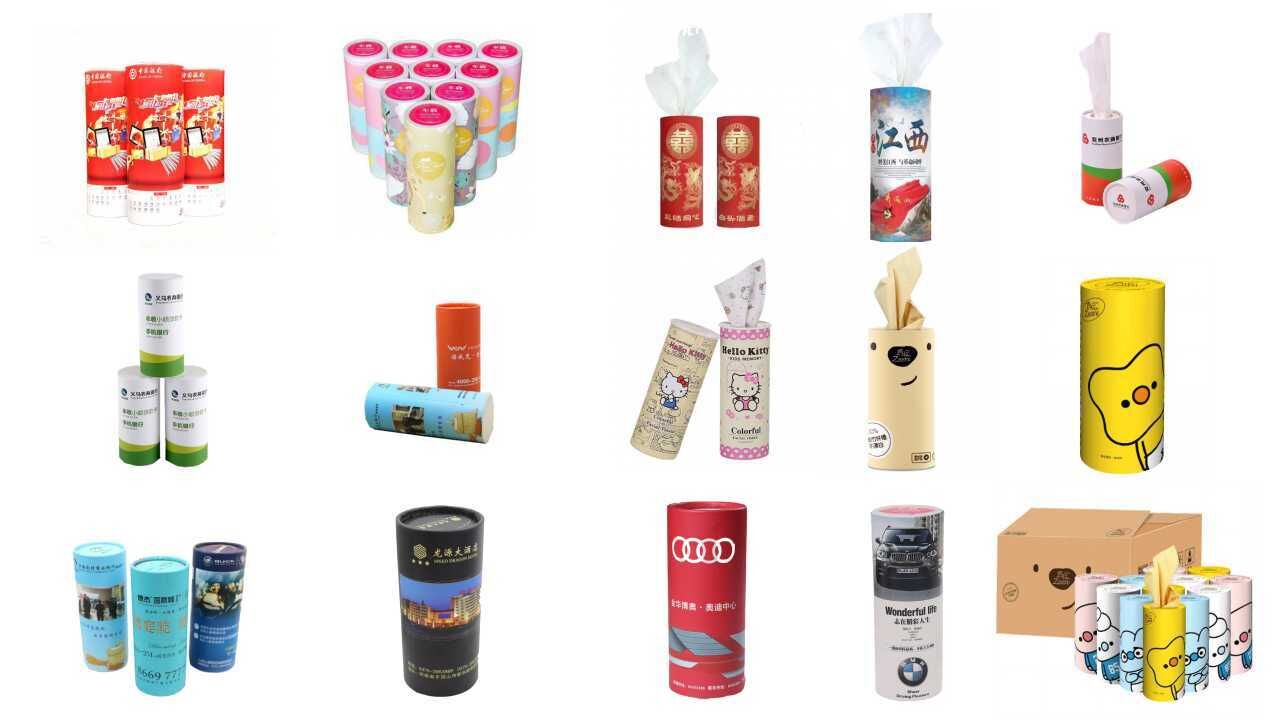

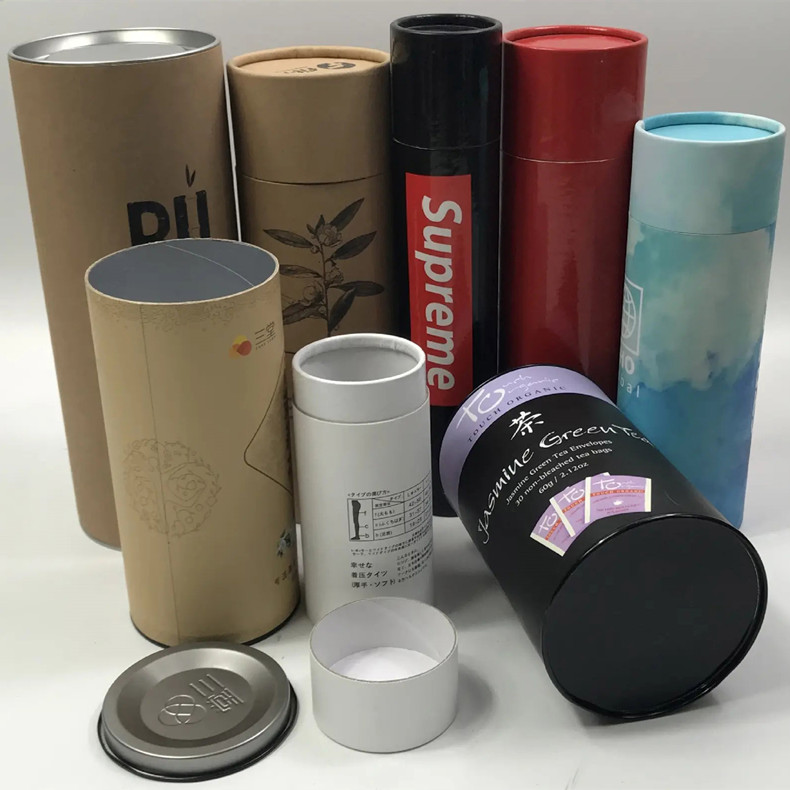

Sample display:

茶叶包装机圆筒包装机

ST-100Y

Full-automatic cylindrical car-mounted paper towel packaging machine
