Five innovations of automatic cartoning machine:

1. High productivity, stable speed up to 80 boxes/minute;

2. Full function, half box/full box, paper high box low/paper low box high;

3. Fast production change, only 10-20 minutes to change specifications;

4. Easy to operate, servo paper feeding and PLC control system are easy to master;

5. The cost is low, and the amount of glue in the 0.3mm-0.36mm nozzle of imported glue machine is small;

Technical parameters:

1. It adopts the packaging forms of automatic feeding, box opening, box entry, glue spraying, box sealing, waste removal, etc., with compact and reasonable structure and simple operation and adjustment;

2. Adopt servo/stepper motor, touch screen and PLC programmable control system, human-machine interface display operation is clear and simple, with high degree of automation and more humanization;

3. The photoelectric eye automatic detection and tracking system is adopted, which can save packaging materials to the maximum extent;

4. Large packaging range, convenient adjustment, and fast conversion between various specifications and sizes;

5. It is not necessary to replace all molds to change specifications, but only a small number of accessories and adjustments;

6. Adopt automatic stop and main drive motor overload protection device when the goods are not in place to ensure safe and reliable operation;

7. According to customer requirements, the up-turning safety cover can be used, which is easy to operate and beautiful in appearance;

8. It can realize linkage production with large rotary cutting machine, heat shrinkable film packaging machine, three-dimensional packaging machine and other equipment;

9. It can design various automatic blanking devices and cartoning systems according to the requirements of packaging materials;

10. According to customer requirements, hot-melt adhesive machine and hot coding machine can be selected.

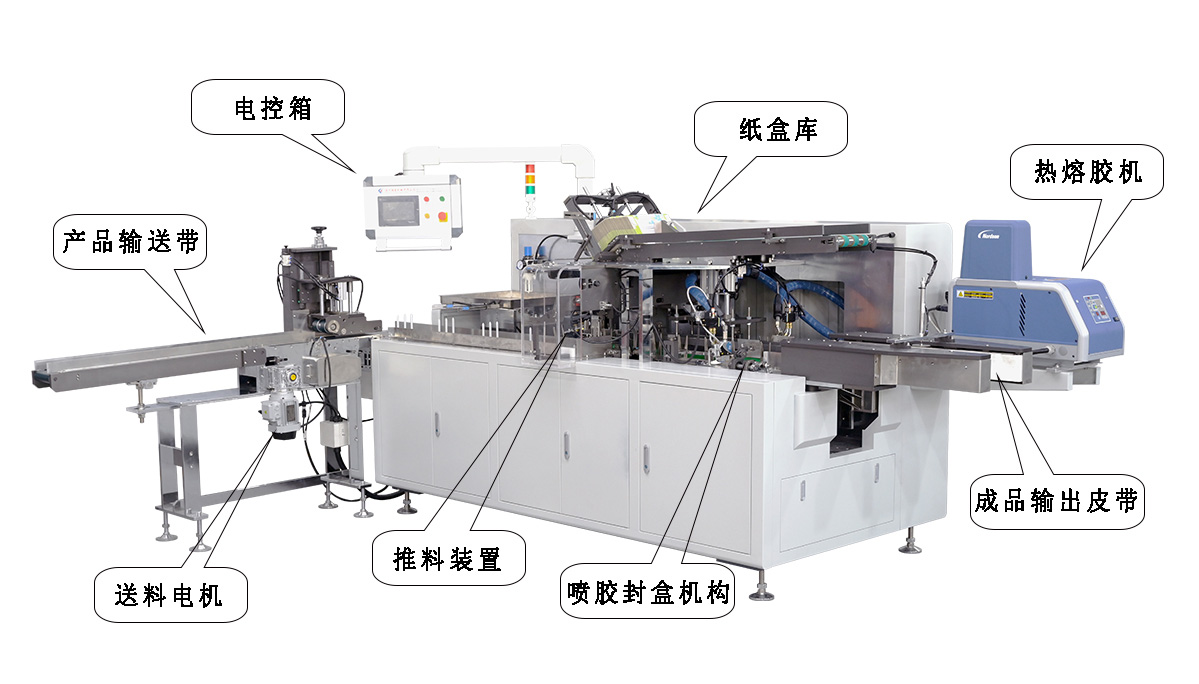

When the material (tissue) is accurately pushed into the carton, the carton will continue to move forward under the drive of the carton chain. The carton is sealed by the closing tongue mechanism at the front end and the folding and sealing mechanism at the lower cover of the carton (at this time, the upper cover is open). When the paper box passes through the glue spraying delay photoelectric switch, the glue spraying mechanism will be instructed by the PLC to spray glue (no glue is sprayed without materials, the length and position of glue spraying can be set through the encoder screen on the touch screen, see the encoder setting instructions for details). After the glue spraying, the paper box will enter the box sealing station. After the paper box is sealed, it will be transported to the finished product output belt by the box feeding chain, and then output by the finished product output belt. An empty box removal device is installed on the finished product output belt to prevent the empty box from entering the next process.

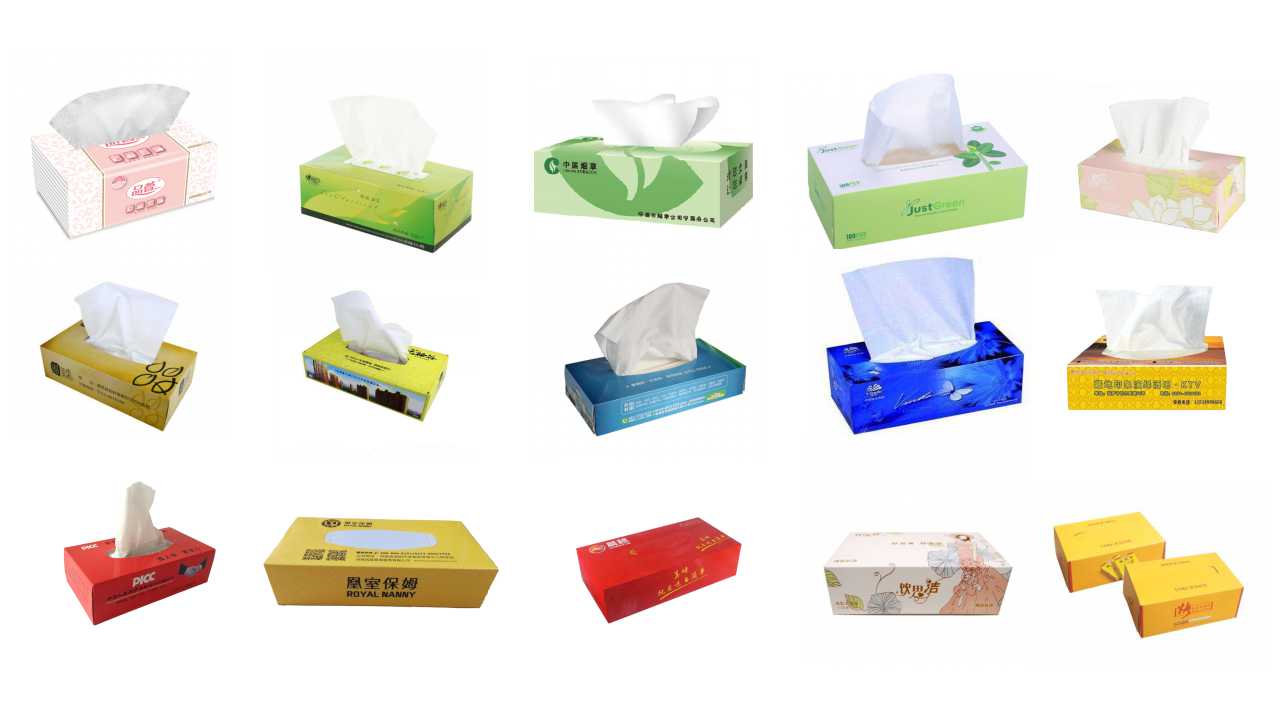

Scope of application:
