Automatic bagging machine for chocolate

Automatic bagging machine for chocolate

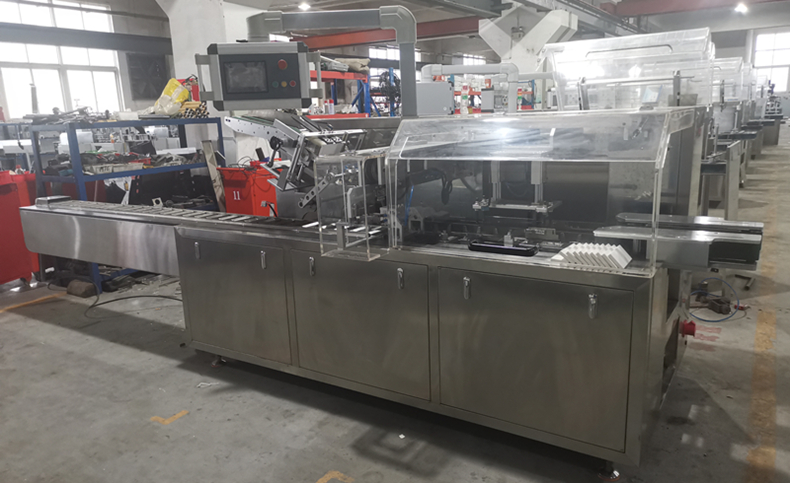

Product Overview:The bagged chocolate cartoning machine is a non-standard customized equipment, which can pack cartons with smaller thickness, and the minimum thickness of cartons can reach 10mm. The whole machine is made of 304 stainless steel, which is smooth and easy to clean. It is suitable for cartoning small products.

Video
Technical parameter

The bagged chocolate cartoning machine is a non-standard customized equipment, which can pack cartons with smaller thickness, and the minimum thickness of cartons can reach 10mm. The whole machine is made of 304 stainless steel, which is smooth and easy to clean. It is suitable for cartoning small products.

食品自动装盒机

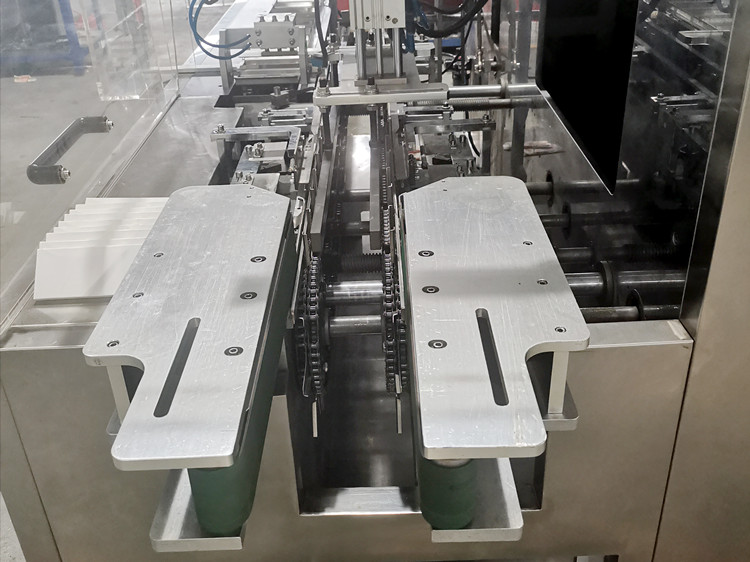

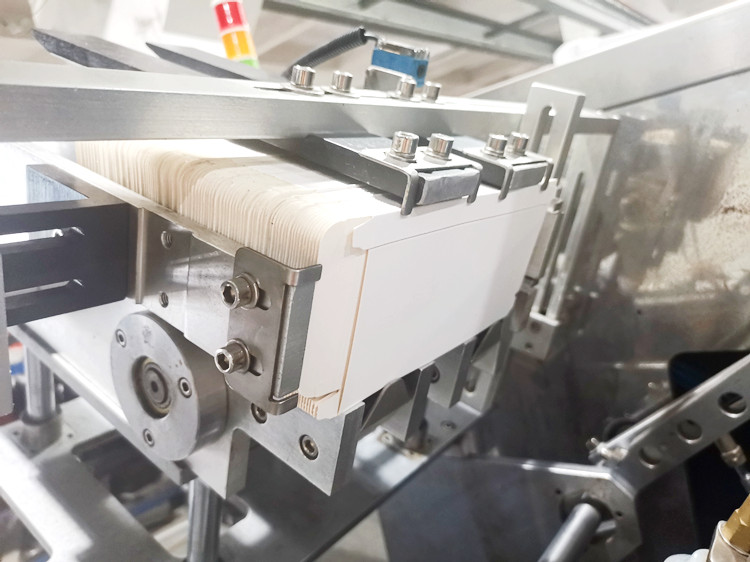

The automatic food cartoning machine automatically sucks and opens the box. The equipment adopts the double-suction and open-box mode, and the open-box effect is good.

巧克力自动装盒机

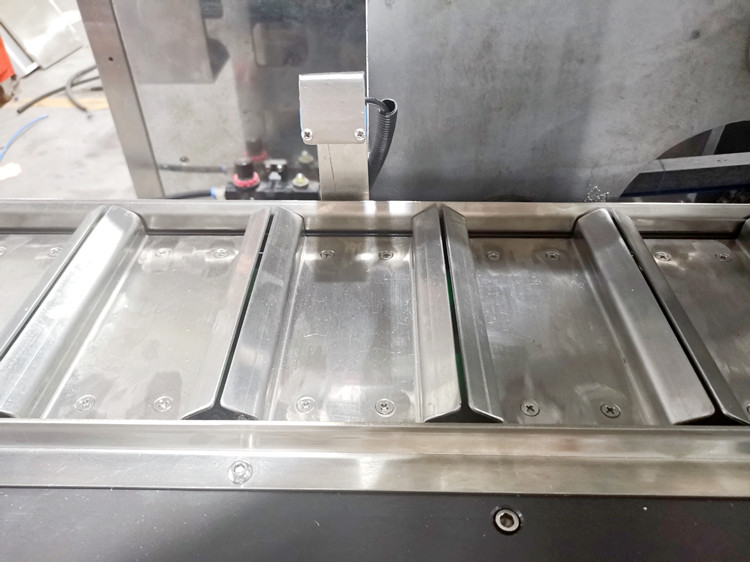

食品自动装盒机输送带,采用304不锈钢,光滑耐用、好清洁。

食品自动装盒机

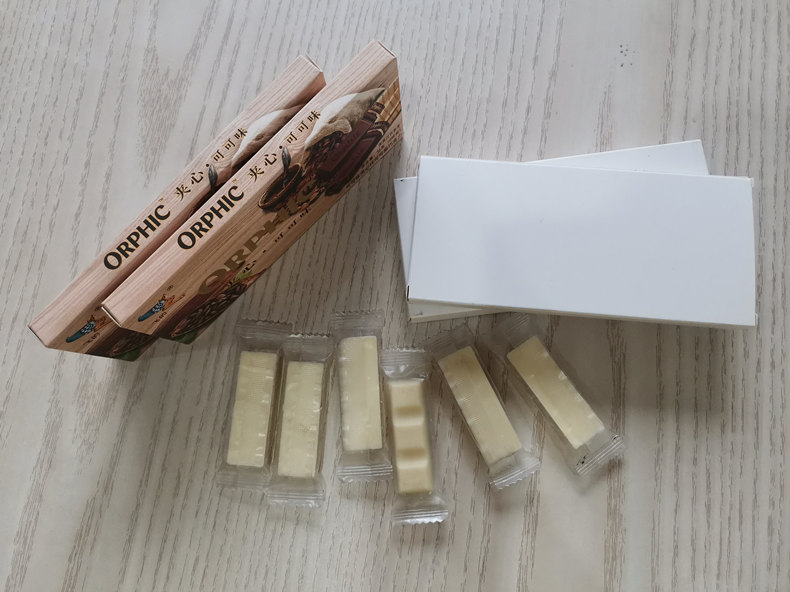

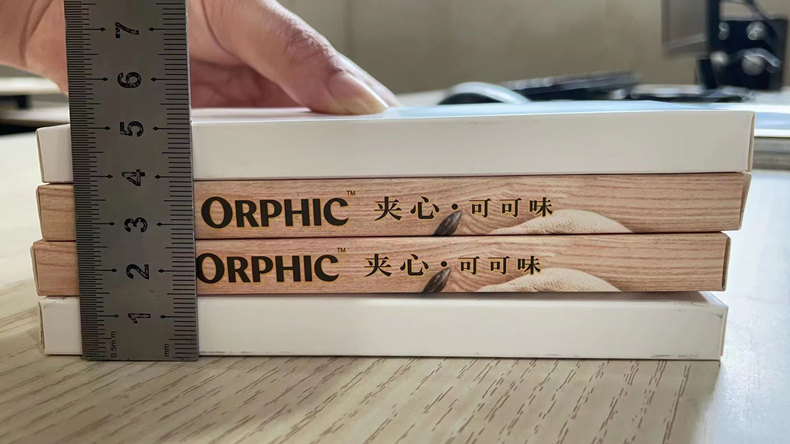

The automatic food cartoning machine automatically transports the food into the box, seals the box with the tongue, outputs the food, and automatically cartons the food. This product has a small carton size, with a height of about 12mm. There are similar cartons with small specifications. This equipment can be considered. The equipment has mature technology and stable operation, which is your best choice.

Technical parameters:

model

STZ-120 moon cake folding machine

Paper requirements

280-350g/m2 (depending on the size of the carton)

Package specification

L65-200mm × W35-120mm × H10-75mm (adjustable according to product specifications)

Packaging speed

30-100 boxes/min

Main engine motor power

2kw

Total power

2kw (actual deviation)

Power supply type

380V 50HZ/60HZ three-phase five-wire

Machine noise

≦80dB

Air source

0.5-0.8Mpa

Gas consumption

120-160L/min

Overall dimensions of the machine

4200mm × 1430mm × 1740mm

Operating Weight

2000kg

Scope of application:

食品纸盒装盒机巧克力纸盒包装机
